Chapter 2 of 4
EVA Underlayments
Ethylene-vinyl acetate (EVA) foam underlayments. Dense, high-performance acoustic foam delivering industry-leading sound reduction values for residential and light commercial floating floor installations. Available with PE film, gold film, aluminium foil, and non-woven fibre surface options.
- EN 16354
- EN ISO 717-2
- REACH
- RoHS
Products in this chapter
Material Overview — EVA
Ethylene-vinyl acetate (EVA) foam is produced by copolymerising ethylene with vinyl acetate to create a cross-linked closed-cell foam. The copolymer structure gives EVA foam exceptional softness, flexibility, and cushioning properties. With a density of 100 kg/m³, the OPUS EVA range delivers significantly higher acoustic performance than standard EPE-based underlayments.
The 3 mm products in the EVA range are recommended for demanding acoustic applications in residential apartment buildings and mixed-use developments where impact sound transmission through floating floors must be minimised. All EVA products are compatible with laminate, engineered hardwood, bamboo, and luxury vinyl plank (LVP/LVT) flooring systems.
- Closed-cell structure
- Density 100 kg/m³
- Water absorption < 0.1%
- High acoustic performance
- Anti-crush performance
- No VOC
Available Colour Variants
All products in this chapter are available in 4 colour variants.
- #000000 Black
- #00B050 Green
- #C0C0C0 Silver
- #00B0F0 Sky Blue
/EVA覆PE膜 (EVA underlayment with PE film)/1.jpg)

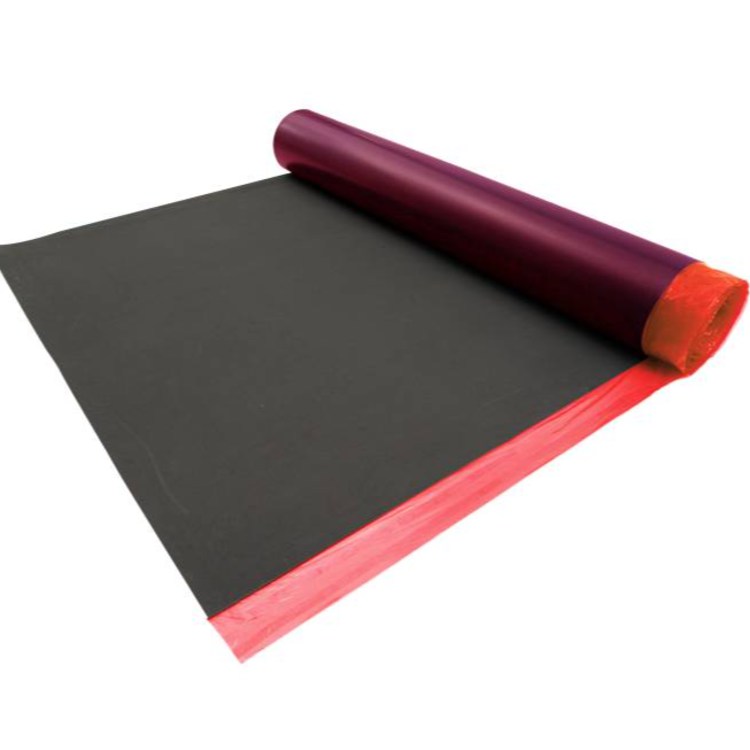

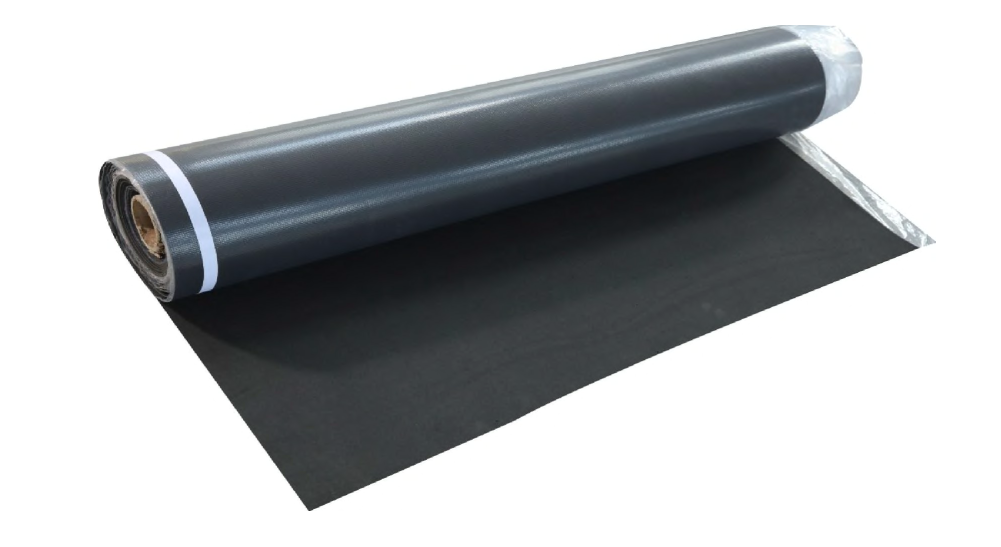

3 mm EVA Underlayment with PE Film
3 mm high-density EVA foam with 0.04 mm PE film moisture barrier. Industry-leading impact sound reduction for floating floor installations.
- Laminate
- Engineered Hardwood
- Bamboo
| Specifications — EVA 30-4 | |
|---|---|
| SKU / Product Code | EVA 30-4 |
| Colour Variants | 4 colour variants: Black (#000000), Green (#00B050), Silver (#C0C0C0), Sky Blue (#00B0F0) |
| Material | Ethylene-Vinyl Acetate (EVA) / Polyethylene |
| Thickness | 3 mm |
| Density | 100 kg/m³ |
| Roll Sizes (Coverage per Roll) | 9.3 m² / 18.6 m² |
| Surface Coating | PE Film, 0.04 mm |
| Thermal Conductivity (λ) | 0.04 W/m·K |
| Thermal Resistance (R-value) | 0.075 m²·K/W |
| Water Absorption | < 0.1% |
| IIC Rating ★ | 73 dB |
| STC Rating ★ | 72 dB |
| EU Acoustic Testing (ΔLw) | Testing in progress — EN ISO 717-2 |
| Applicable Flooring Types | Laminate, Engineered Hardwood, Bamboo |
| EU Standards Reference | EN 16354, EN ISO 717-2 |
| Packaging Options | Nude (unpackaged roll), Pallet, Carton |
| Container Loading — 20GP | 8,000 m² |
| Container Loading — 40HC | 18,000 m² |
| Country of Origin | China |
| ★ IIC and STC ratings are measured to North American standards (ASTM E492 / ASTM E90). EU-equivalent impact sound improvement (ΔLw, dB) per EN ISO 717-2 testing is in progress for the European market. | |
Key features:
- High-density foam for superior impact sound reduction
- Self-sealing lip and tape system for easy installation
- Built-in moisture barrier
- Anti-crush technology for long service life
- Mould and mildew resistance
- No VOC
Packaging options
- Nude (unpackaged roll)
- Pallet
- Carton

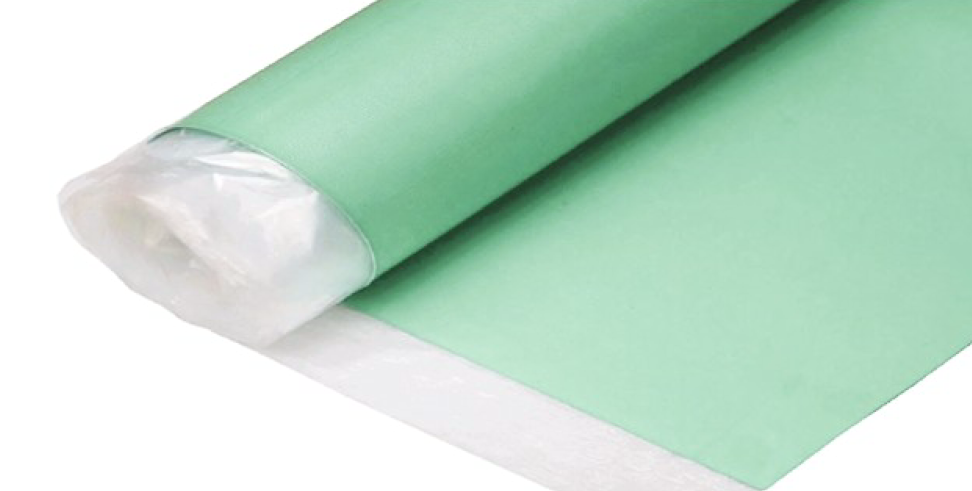

3 mm EVA Underlayment with PE Film and Grip Base
3 mm high-density EVA foam with 0.04 mm PE film and grip base layer. Extended flooring compatibility to include vinyl flooring systems.
- Laminate
- Engineered Hardwood
- Bamboo
- Vinyl
| Specifications — EVA 30G-4 | |
|---|---|
| SKU / Product Code | EVA 30G-4 |
| Colour Variants | 4 colour variants: Black (#000000), Green (#00B050), Silver (#C0C0C0), Sky Blue (#00B0F0) |
| Material | Ethylene-Vinyl Acetate (EVA) / Polyethylene |
| Thickness | 3 mm |
| Density | 100 kg/m³ |
| Roll Sizes (Coverage per Roll) | 9.3 m² / 18.6 m² |
| Surface Coating | PE Film, 0.04 mm (with grip base) |
| Thermal Conductivity (λ) | 0.04 W/m·K |
| Thermal Resistance (R-value) | 0.075 m²·K/W |
| Water Absorption | < 0.1% |
| IIC Rating ★ | 73 dB |
| STC Rating ★ | 72 dB |
| EU Acoustic Testing (ΔLw) | Testing in progress — EN ISO 717-2 |
| Applicable Flooring Types | Laminate, Engineered Hardwood, Bamboo, Vinyl |
| EU Standards Reference | EN 16354, EN ISO 717-2 |
| Packaging Options | Nude (unpackaged roll), Pallet, Carton |
| Container Loading — 20GP | 8,000 m² |
| Container Loading — 40HC | 18,000 m² |
| Country of Origin | China |
| ★ IIC and STC ratings are measured to North American standards (ASTM E492 / ASTM E90). EU-equivalent impact sound improvement (ΔLw, dB) per EN ISO 717-2 testing is in progress for the European market. | |
Key features:
- High-density foam for superior impact sound reduction
- Grip base layer adds stability for soft-backed vinyl planks
- Self-sealing lip and tape system for easy installation
- Built-in moisture barrier
- Anti-crush technology for long service life
- No VOC
Packaging options
- Nude (unpackaged roll)
- Pallet
- Carton

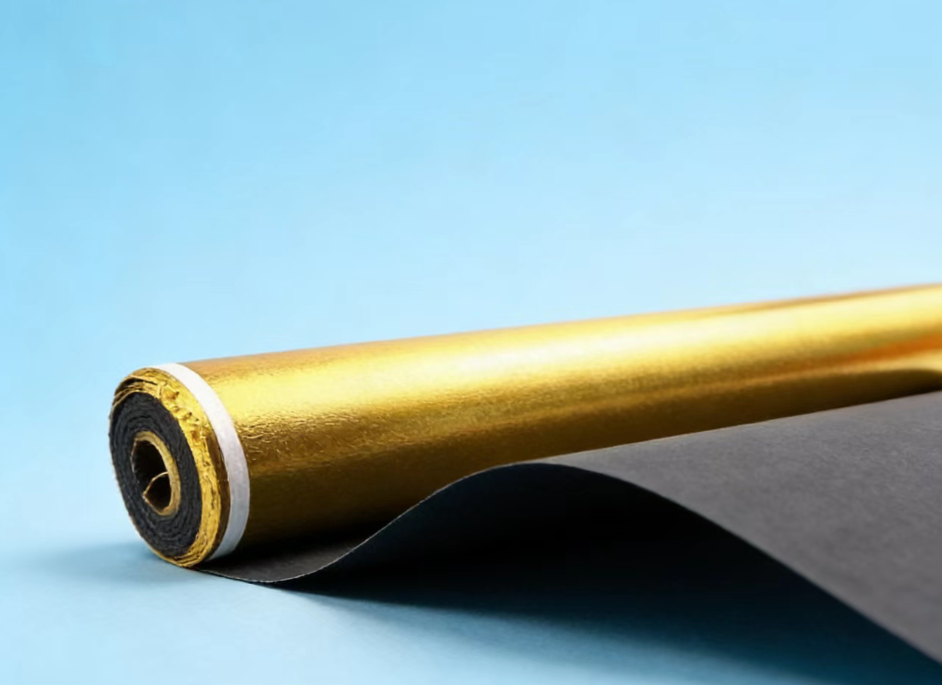

3 mm EVA Underlayment with Gold Film
3 mm high-density EVA foam with gold film surface. Compatible with laminate, hardwood, bamboo, and vinyl flooring systems.
- Laminate
- Engineered Hardwood
- Bamboo
- Vinyl
| Specifications — EVA 30-G | |
|---|---|
| SKU / Product Code | EVA 30-G |
| Colour Variants | 4 colour variants: Black (#000000), Green (#00B050), Silver (#C0C0C0), Sky Blue (#00B0F0) |
| Material | Ethylene-Vinyl Acetate (EVA) |
| Thickness | 3 mm |
| Density | 100 kg/m³ |
| Roll Sizes (Coverage per Roll) | 9.3 m² / 18.6 m² |
| Surface Coating | Gold Film |
| Thermal Conductivity (λ) | 0.04 W/m·K |
| Thermal Resistance (R-value) | 0.075 m²·K/W |
| Water Absorption | < 0.1% |
| IIC Rating ★ | 73 dB |
| STC Rating ★ | 72 dB |
| EU Acoustic Testing (ΔLw) | Testing in progress — EN ISO 717-2 |
| Applicable Flooring Types | Laminate, Engineered Hardwood, Bamboo, Vinyl |
| EU Standards Reference | EN 16354, EN ISO 717-2 |
| Packaging Options | Nude (unpackaged roll), Pallet, Carton |
| Country of Origin | China |
| ★ IIC and STC ratings are measured to North American standards (ASTM E492 / ASTM E90). EU-equivalent impact sound improvement (ΔLw, dB) per EN ISO 717-2 testing is in progress for the European market. | |
Key features:
- High-density foam for superior impact sound reduction
- Gold film moisture barrier with reflective properties
- Anti-crush technology for long service life
- Mould and mildew resistance
- No VOC
Packaging options
- Nude (unpackaged roll)
- Pallet
- Carton

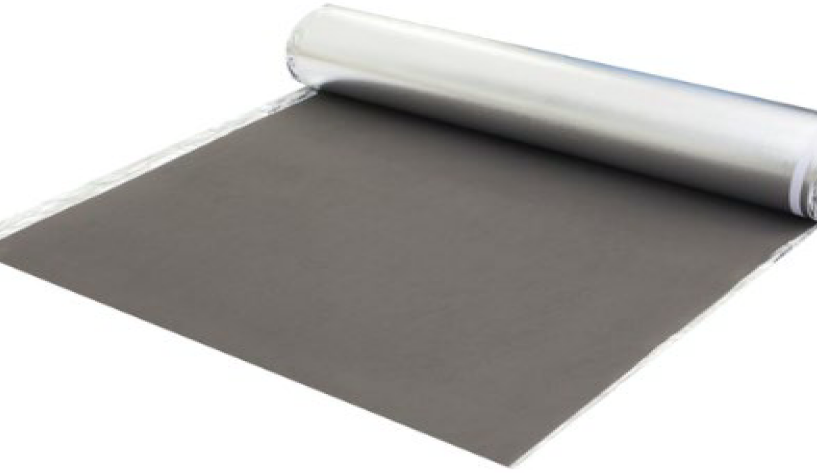

3 mm EVA Underlayment with Aluminium Foil
3 mm high-density EVA foam with aluminium foil backing. Reflective foil barrier provides excellent moisture protection and radiant heat reflection.
- Laminate
- Engineered Hardwood
- Bamboo
- Vinyl
| Specifications — EVA 30-F | |
|---|---|
| SKU / Product Code | EVA 30-F |
| Colour Variants | 4 colour variants: Black (#000000), Green (#00B050), Silver (#C0C0C0), Sky Blue (#00B0F0) |
| Material | Ethylene-Vinyl Acetate (EVA) / Aluminium Foil |
| Thickness | 3 mm |
| Density | 100 kg/m³ |
| Roll Sizes (Coverage per Roll) | 9.3 m² / 18.6 m² |
| Surface Coating | Aluminium Foil |
| Thermal Conductivity (λ) | 0.04 W/m·K |
| Thermal Resistance (R-value) | 0.075 m²·K/W |
| Water Absorption | < 0.1% |
| IIC Rating ★ | 73 dB |
| STC Rating ★ | 72 dB |
| EU Acoustic Testing (ΔLw) | Testing in progress — EN ISO 717-2 |
| Applicable Flooring Types | Laminate, Engineered Hardwood, Bamboo, Vinyl |
| EU Standards Reference | EN 16354, EN ISO 717-2 |
| Packaging Options | Nude (unpackaged roll), Pallet, Carton |
| Country of Origin | China |
| ★ IIC and STC ratings are measured to North American standards (ASTM E492 / ASTM E90). EU-equivalent impact sound improvement (ΔLw, dB) per EN ISO 717-2 testing is in progress for the European market. | |
Key features:
- High-density foam for superior impact sound reduction
- Reflective aluminium foil for enhanced moisture and radiant barrier
- Anti-crush technology for long service life
- Mould and mildew resistance
- No VOC
Packaging options
- Nude (unpackaged roll)
- Pallet
- Carton

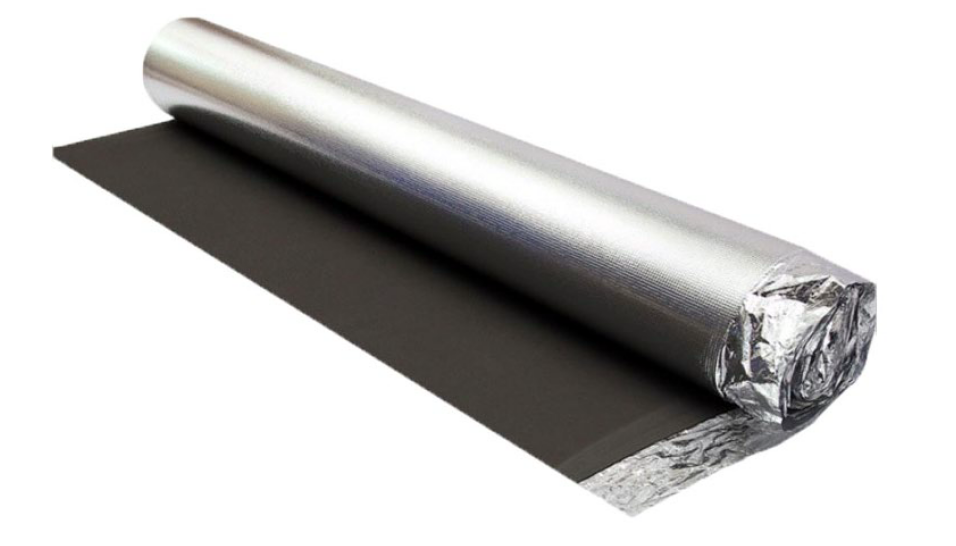

2 mm EVA Underlayment with Aluminium Foil
2 mm high-density EVA foam with aluminium foil backing. Slim profile for pre-attached and thin-profile flooring systems. Compatible with vinyl flooring.
- Laminate
- Engineered Hardwood
- Bamboo
- Vinyl
| Specifications — EVA 20-A | |
|---|---|
| SKU / Product Code | EVA 20-A |
| Colour Variants | 4 colour variants: Black (#000000), Green (#00B050), Silver (#C0C0C0), Sky Blue (#00B0F0) |
| Material | Ethylene-Vinyl Acetate (EVA) / Aluminium Foil |
| Thickness | 2 mm |
| Density | 100 kg/m³ |
| Roll Sizes (Coverage per Roll) | 9.3 m² / 18.6 m² |
| Surface Coating | Aluminium Foil |
| Thermal Conductivity (λ) | 0.04 W/m·K |
| Thermal Resistance (R-value) | 0.05 m²·K/W |
| Water Absorption | < 0.1% |
| IIC Rating ★ | 64 dB |
| STC Rating ★ | 65 dB |
| EU Acoustic Testing (ΔLw) | Testing in progress — EN ISO 717-2 |
| Applicable Flooring Types | Laminate, Engineered Hardwood, Bamboo, Vinyl |
| EU Standards Reference | EN 16354, EN ISO 717-2 |
| Packaging Options | Nude (unpackaged roll), Pallet, Carton |
| Container Loading — 20GP | 12,000 m² |
| Container Loading — 40HC | 27,000 m² |
| Country of Origin | China |
| ★ IIC and STC ratings are measured to North American standards (ASTM E492 / ASTM E90). EU-equivalent impact sound improvement (ΔLw, dB) per EN ISO 717-2 testing is in progress for the European market. | |
Key features:
- High-density EVA foam in a slim 2 mm profile
- Aluminium foil moisture and radiant barrier
- Suitable for pre-attached flooring requiring additional acoustic performance
- Anti-crush technology
- No VOC
Packaging options
- Nude (unpackaged roll)
- Pallet
- Carton
